Round Dripline
Used for irrigating row crops, fresh vegetables, potatoes, vineyards, orchards and greenhouse applications.
Ideal for long irrigation laterals particularly in cotton, banana and sugar cane plantations.
Main Features

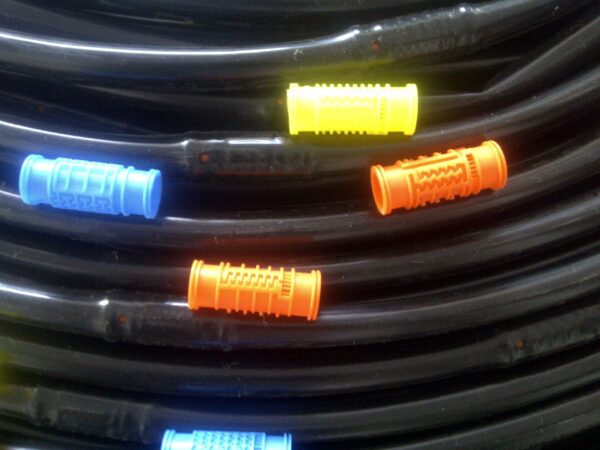

• Contains a turbulent flow emitter inseparably welded to the inside wall of the tube at different spacing.
• Its Labyrinth type emitter features a self-cleaning built-in strainer at its inlet.
• Its jointless design guarantees longer lateral lengths with uniform emission.
• Easy mechanical installation and recovery irregardless of crop density.
• Multi outlet emitter for a more uniform water distribution.
• Easily buried underground when produced with a special root repellent material that protects it from the closing typically caused by roots.
• Easy roll-up, storage and re-use season after season.
• Technical Specifications
Technical Features
• Diameter=16mm
• Discharge rates= 2 LPH and 4 LPH
• Emitter spacing is available starting from 20cm up to 100cm at any interval.
• Recommended filtration is 120 mesh, using a screen or disc filter.
Applications:
Irrigation of row crops, permanent crops, orchards, vineyards and greenhouse applications.
Crops: sugarcane, cotton, corn, banana, vegetables, grapes, etc.
Technical Specifications:
2LPH 4LPH
PRESSURE (BAR) MEAN FLOW (LPH)
0.5 1.1 2.7
1 1.6 3.9
1.5 2 4.7
2 2.3 5.5
DRIPPER SPACING (CMS)- FOR 2 LPH
30 40 50
SLOPE PIPE RUNNING IN METERS
1% DOWN HILL 97 120 143
0% 86 104 120
1% UP HILL 73 85 96
DRIPPER SPACING (CMS)- FOR 4 LPH
30 40 50
SLOPE PIPE RUNNING IN METERS
1% DOWN HILL 50 61 72
0% 47 57 66
1% UP HILL 43 51 58
