Super Mini Sprinklers Each Mini sprinkler assembly consist of mini sprinkler with an in-built stake, which can be attached to 12 or 16mm lateral. Also comes without stake, for which mini sprinkler can be belted to an external wooden/ metal stake of any suitable height. Advantages: Can be connected to 12mm or 16mm drip laterals. Easy to dissemble and clean. Operates at low pressure Uniform wetting Cheaper to install than the conventional sprinkler system Made from best quality polacetal resin to give maximum life. Durable and unbreakable More durable than the microsprinkler systems but need 2kg/cm2 pressure as against 1.2 kgs/cms2 required for microsprinklers Reasonable pricing. Application Minisprinkler systems are used where complete area is to be covered perfectly without causing any harm to the crop/plants. This is best suitable for all crops where it is necessary to cover entire area, like ginger, safedmusli, onions and medicinal plants and all

Round Dripline Used for irrigating row crops, fresh vegetables, potatoes, vineyards, orchards and greenhouse applications. Ideal for long irrigation laterals particularly in cotton, banana and sugar cane plantations. Main Features • Contains a turbulent flow emitter inseparably welded to the inside wall of the tube at different spacing. • Its Labyrinth type emitter features a self-cleaning built-in strainer at its inlet. • Its jointless design guarantees longer lateral lengths with uniform emission. • Easy mechanical installation and recovery irregardless of crop density. • Multi outlet emitter for a more uniform water distribution. • Easily buried underground when produced with a special root repellent material that protects it from the closing typically caused by roots. • Easy roll-up, storage and re-use season after season. • Technical Specifications Technical Features • Diameter=16mm • Discharge rates= 2 LPH and 4 LPH • Emitter spacing is available starting from 20cm up to 100cm at

Plain Laterals These laterals are made from virgin LLDPE material with black master batch additives of the highest standards to give the best UV resistance for very longlife operations. These are also available with antirodent additives using bifferant which is not harmful but prevents rodents from biting. Technical Specifications : Outside Diameter: 12mm and 16 mm Wall Thickenss: 1-1.3mm. Also available in 0.6-0.8 mm thickness. Conforming to IS specification

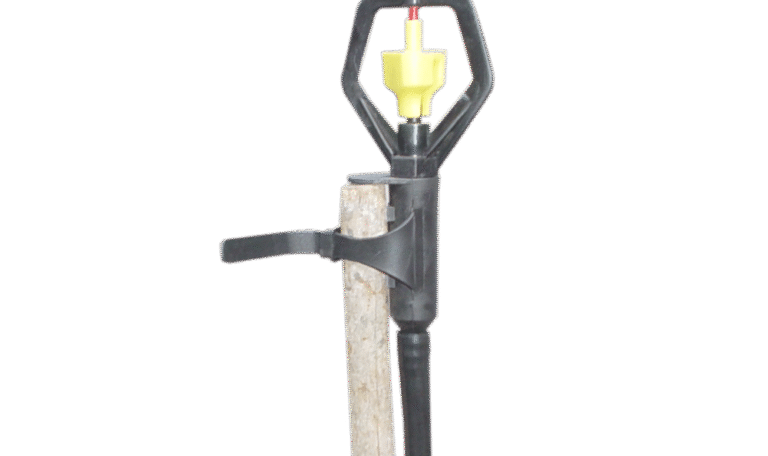

Mini Sprinkler Each Mini sprinkler assembly consist of mini sprinkler with an in-built stake, which can be attached to 12 or 16mm lateral. Also comes without stake, for which mini sprinkler can be belted to an external wooden/ metal stake of any suitable height. Advantages: • Can be connected to 12mm or 16mm drip laterals. • Easy to dissemble and clean. • Operates at low pressure • Uniform wetting • Cheaper to install than the conventional sprinkler system • Made from best quality polacetal resin to give maximum life. • Durable and unbreakable • More durable than the microsprinkler systems but need 2kg/cm2 pressure as against 1.2 kgs/cms2 required for microsprinklers • Reasonable pricing. Application Minisprinkler systems are used where complete area is to be covered perfectly without causing any harm to the crop/plants. This is best suitable for all crops where it is necessary to cover entire area, like

Midi Sprinkler Each Midi sprinkler assembly consist of midi sprinkler with 0.3 – 1 mtr of 4mm tubing and 4mm connector which can go into the 12 or 16mm lateral. Special holding stakes to hold the assembly firmly also available as an optional item. Midisprinkler system is used particularly for plantation with a height of above 2ft. These are the only ones which give best uniformity at the ht of 2.5-3ft. Can be used for all types of crops like ginger, onion, shatavari, vegetables & nurseries. Very economical and effective for stevia,etc.

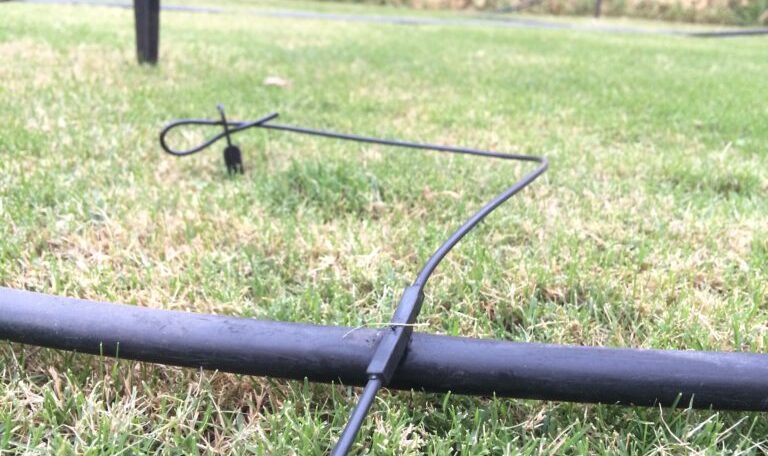

Microtubes Microtubes are low-cost emitters . Discharge from these depends on the length of the microtube. Holding pegs and Tee-connectors are used as additional items with the micro tubes.

Micro Sprayers Micro sprayers are used where complete area is to be irrigated as well as certain level of humidity/coolness is required for tender plants. These are mainly used in nurseries, shadenet houses, polyhouses, etc.

We are supply layflat pipes in various size with all the required fittings. Technical Specifications Layflat pipes of PE Material Dia: 25mm, 32mm and 50mm Thickness: 1-1.5mm Layflat pipes of PE Material Dia: 25mm, 32mm and 50mm Thickness: 1-1.5mm

Irrigation Kits We have a huge range of micro -irrigation kits which can be powered by 1.Gravity (drum/bucket kit), 2. Ecoflo hand pump, or 3.Ecoflo treadle pump These kits use either, 1. Inlines (thin walled integrated driplines) or 2. Mini sprinklers Standard kits: • 100sq.mtr Dripline Gravity kit • 200sq.mtr Dripline Gravity kit • 300sq.mtr mini sprinkler -Ecoflo hand pump kit • 500sq.mtr mini sprinkler -Ecoflo treadle pump kit • 500sq.mtr Dripline Gravity Kit (PE Pipe) • 1000sq.mtr Dirpline Gravity Kit (PE Pipe) • 1000sq.mtr Dripline Gravity Kit (Rigid PE Pipe) • 1000sq.mtr Dripline Mini Sprinkler Kit • 1/2Acre (2000sq.mtr) Dripline Gravity Kit (Rigid PE Pipe) • 1/2Acre (2000sq.mtr) Dripline Motor Kit (PVC Pipe) • 1Acre (4000sq.mtr) Dripline Motor Kit (Rigid PE Pipe) • 1Acre (4000sq.mtr) Dripline Motor Kit (PVC Pipe) • 1Hectare (10000sq.mtr) Dripline Motor Kit (PVC Pipe) • 2Hectares (20000sq.mtr) Dripline Motor Kit (PVC Pipe)

Technical Specifications HDPE Material Dia: 25mm, 32mm, 40mm, 50mm, 63mm

Foggers Advantages: Available in 4way, 2way mid single way with antileak Operates at a low pressure. Hence, high pressure pumps are not necessary. Can be mounted on 16mm drip laterals. Comes with a no drain valve. Easy to dissemble and clean. Made from best engineering plastic. Can be used with our special antirodent laterals for poultry sheds. Reasonable pricing. Application Single fogger without antileak for irrigation as well as microclimate application. Best for green house and polyhouse. • Technical Specifications Types available 4way/2way/single way Operating pressure 1.5-2.5kg/cm2 Opening pressure for no drain valve 1kg/cm2 Nozzle size 0.5mm Droplet size 80-100micron Emission rate from each nozzle 7.5lph at 2kg/cm2 Wetting radius 1meter Manufactured from Engineering plastic

Drippers Openable Turbo type: Non pressure compensating . Available in 4 and 8 lph discharge with ISI Mark. Each dripper is individually factory tested for discharge to give the best uniformity. The material used is of best quality for complete UV stability and life. Also available in pressure compensating 4 Lph discharge. PCND Dripper : These dripper have been newly developed by us and would be available at the price of regular drippers in the market. With these drippers all plants at any length or level would get the same quantity of water.

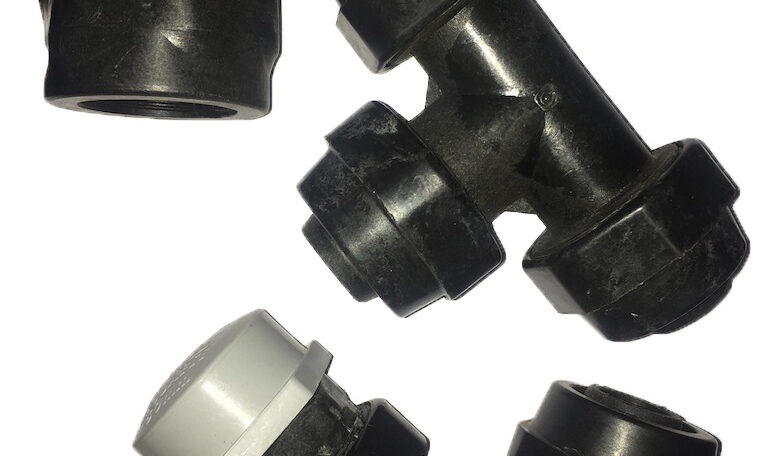

Connectors & Accessories Connectors We have practically every type of connector required for a drip system. Tees with many combinations. Microtees specially for using microtubes. Holding pegs for puffing the outlets of microtubes in place. Special Connectors for Integrated drip lines. We can custom design and supply any type of connector. Accessories Lateral stop cocks: Can be used for controlling the flow and also for flushing at the ends- available in 12mm and 16mm. Lateral Filters: 16mm 2mtr grater then 3 filter, 16mm strainer filter, 1 2mm strainer filter with stainless steel mesh for smaller systems and added filtration. Dripper Opening Spanner Dripper Hole Punch Mistake/ hole plugs
